Product Detail

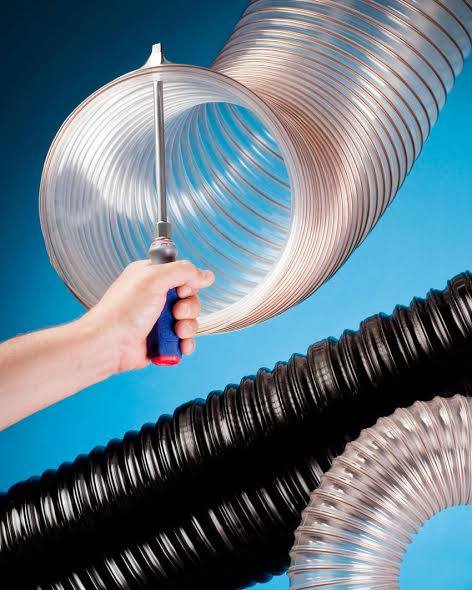

Film hoses have a spring steel wire embedded in the wall and are welded from spiral tape material. They are extremely flexible, compressible and lightweight.
Applications:
• flexible hose/ ducting for gases and for abrasive dust, powder, fibers
• extraction unit, dust collection systems, filter system, oil mist extraction
• extraction arm
• chemical industry: chemical vapors, vapor return hose at loading arm, paint steam, spray mist extraction
• explosion hazard area
• animal stall, animal shed: barn ventilation
• bus, utility vehicle, caravan/ trailer, mobile home/ camper/ RV, boat, ship/ vessel/ marine, yacht: ventilation, heating
• clean room ventilation, semiconductor production machine
• bellows, compensators
Properties:
• super-light weight
• highly flexible + compressible 3:1
• abrasion-resistant
• microbe resistant
• good resistance to oil, gasoline, and chemicals
• very good low temperature flexibility
• flame-retardant according to: UL94-HB
• flame-retardant according to: DIN 4102-B1
• permanently antistatic wall: in accordance with ISO 8031 electrical
• conforms to RoHS guideline
• REACH according to --> Technology / Technical Information / REACH
Temperature range:
• -40℃ to 195℃
• short time to 255℃
Design, material:
1. spring steel wire integrated in the wall
2. wall: permanently antistatic premium ester-polyurethane
Delivery variants :
• further diameters and lengths available on request
• transparent (standard)
• customer-specific branding
|
ID mm |
Wall thickness (0.4mm) |
Wall thickness (0.6mm) |
Wall thickness (0.9mm) |
Wall thickness (1.2mm) |
Wall thickness (1.5mm) |
Wall thickness (2.0mm) |
|
|
super-light weight |
light weight |
medium-heavy duty |
heavy duty |
heavy duty |
super-heavy duty |
|
25 |
× |
√ |
√ |
√ |
√ |
√ |
|
32 |
× |
√ |
√ |
√ |
√ |
√ |
|
35 |
× |
√ |
√ |
√ |
√ |
√ |
|
38 |
× |
√ |
√ |
√ |
√ |
√ |
|
40 |
× |
√ |
√ |
√ |
√ |
√ |
|
45 |
× |
√ |
√ |
√ |
√ |
√ |
|
50 |
√ |
√ |
√ |
√ |
√ |
√ |
|
60 |
√ |
√ |
√ |
√ |
√ |
√ |
|
63 |
√ |
√ |
√ |
√ |
√ |
√ |
|
70 |
√ |
√ |
√ |
√ |
√ |
√ |
|
75 |
√ |
√ |
√ |
√ |
√ |
√ |
|
80 |
√ |
√ |
√ |
√ |
√ |
√ |
|
90 |
√ |
√ |
√ |
√ |
√ |
√ |
|
100 |
√ |
√ |
√ |
√ |
√ |
√ |
|
110 |
√ |
√ |
√ |
√ |
√ |
√ |
|
120 |
√ |
√ |
√ |
√ |
√ |
√ |
|
125 |
√ |
√ |
√ |
√ |
√ |
√ |
|
130 |
√ |
√ |
√ |
√ |
√ |
√ |
|
140 |
√ |
√ |
√ |
√ |
√ |
√ |
|
150 |
√ |
√ |
√ |
√ |
√ |
√ |
|
160 |
√ |
√ |
√ |
√ |
√ |
√ |
|
170 |
√ |
√ |
√ |
√ |
√ |
√ |
|
180 |
√ |
√ |
√ |
√ |
√ |
√ |
|
200 |
√ |
√ |
√ |
√ |
√ |
√ |
|
210 |
√ |
√ |
√ |
√ |
√ |
√ |
|
220 |
√ |
√ |
√ |
√ |
√ |
√ |
|
225 |
√ |
√ |
√ |
√ |
√ |
√ |
|
250 |
√ |
√ |
√ |
√ |
√ |
√ |
|
275 |
√ |
√ |
√ |
√ |
√ |
√ |
|
300 |
√ |
√ |
√ |
√ |
√ |
√ |
|
325 |
√ |
√ |
√ |
√ |
√ |
√ |
|
350 |
√ |
√ |
√ |
√ |
√ |
√ |
|
375 |
√ |
√ |
√ |
√ |
√ |
√ |
|
400 |
√ |
√ |
√ |
√ |
√ |
√ |
|
500 |
√ |
√ |
√ |
√ |
√ |
√ |
