Product Detail

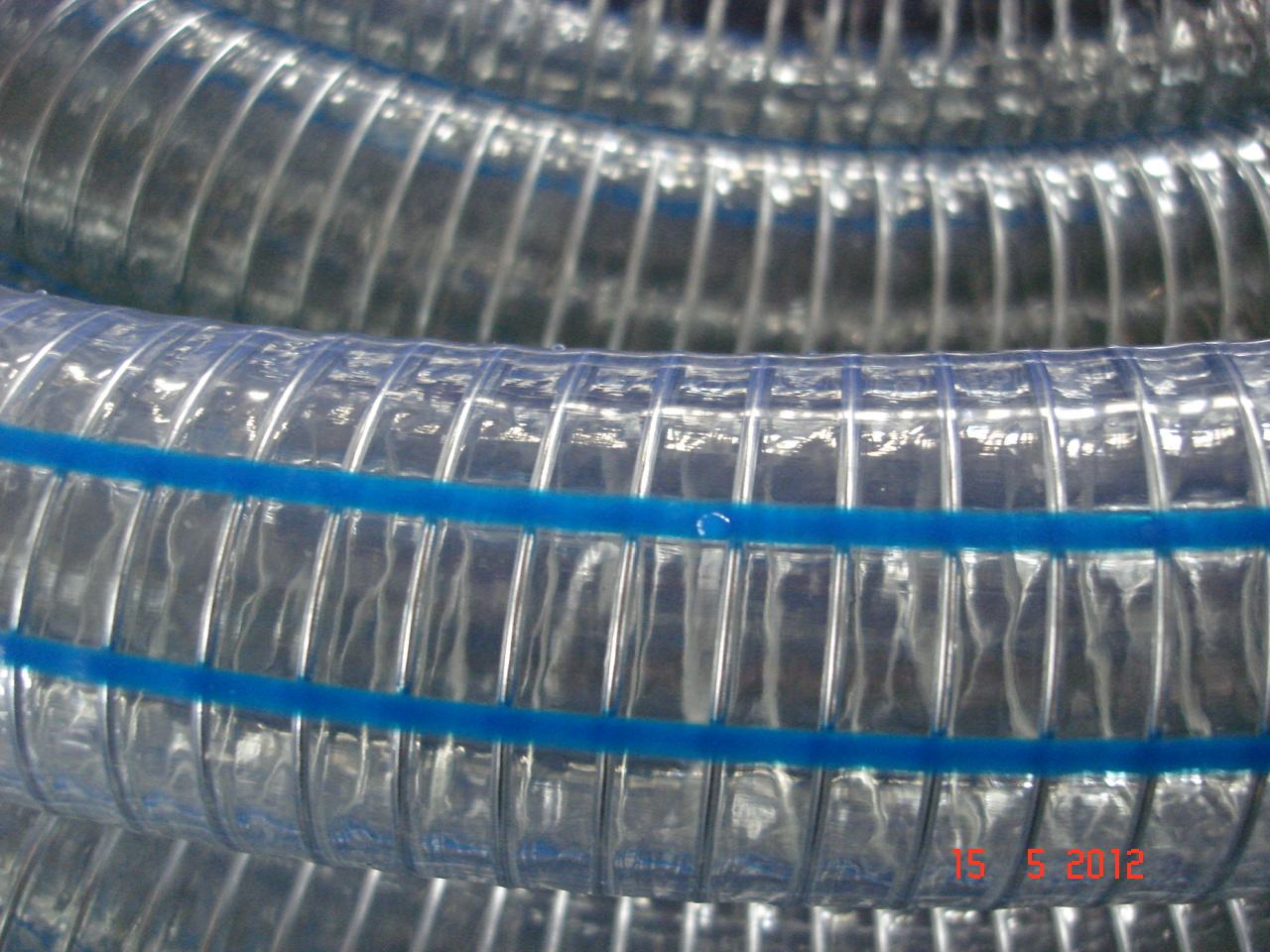

l Hi-elasticity, Hi-strength zinc plated metal wire qualified special PVC synthesis materials. Suitable for high strength working environment like suction and discharge for sand.
l Used under 100℃ condition, suitable for different high temperature environment.
|
Imperial Sizing |
Metric Size
|
Length |
MAX.W.P |
MAX.B.P |
Weight |
|
|
At 23℃ |
||||||
|
Inch |
I.D.mm |
O.D.mm |
m/roll |
Bar |
Bar |
g/m |
|
3/8" |
10 |
16 |
100 |
8 |
24 |
200 |
|
1/2" |
12 |
18 |
100 |
8 |
24 |
220 |
|
5/8" |
15 |
22 |
50 |
6 |
18 |
300 |
|
3/4" |
19 |
26 |
50 |
6 |
18 |
360 |
|
3/4" |
20 |
26 |
50 |
6 |
18 |
320 |
|
7/8" |
22 |
27 |
50 |
6 |
18 |
300 |
|
1" |
25 |
33 |
50 |
5 |
16 |
540 |
|
1-1/4" |
32 |
40 |
50 |
5 |
16 |
700 |
|
1-1/2" |
38 |
48 |
50 |
5 |
15 |
1000 |
|
1-3/4" |
45 |
56 |
50 |
5 |
15 |
1300 |
|
1-7/8" |
48 |
59 |
50 |
5 |
15 |
1400 |
|
2" |
50 |
62 |
50 |
5 |
15 |
1600 |
|
2-5/16" |
58 |
69 |
40 |
4 |
12 |
1600 |
|
2-1/2" |
64 |
78 |
30 |
4 |
12 |
2500 |
|
3" |
76 |
90 |
30 |
4 |
12 |
3000 |
|
3-1/2" |
90 |
108 |
30 |
4 |
12 |
4500 |
|
4" |
102 |
116 |
20 |
4 |
12 |
4300 |
